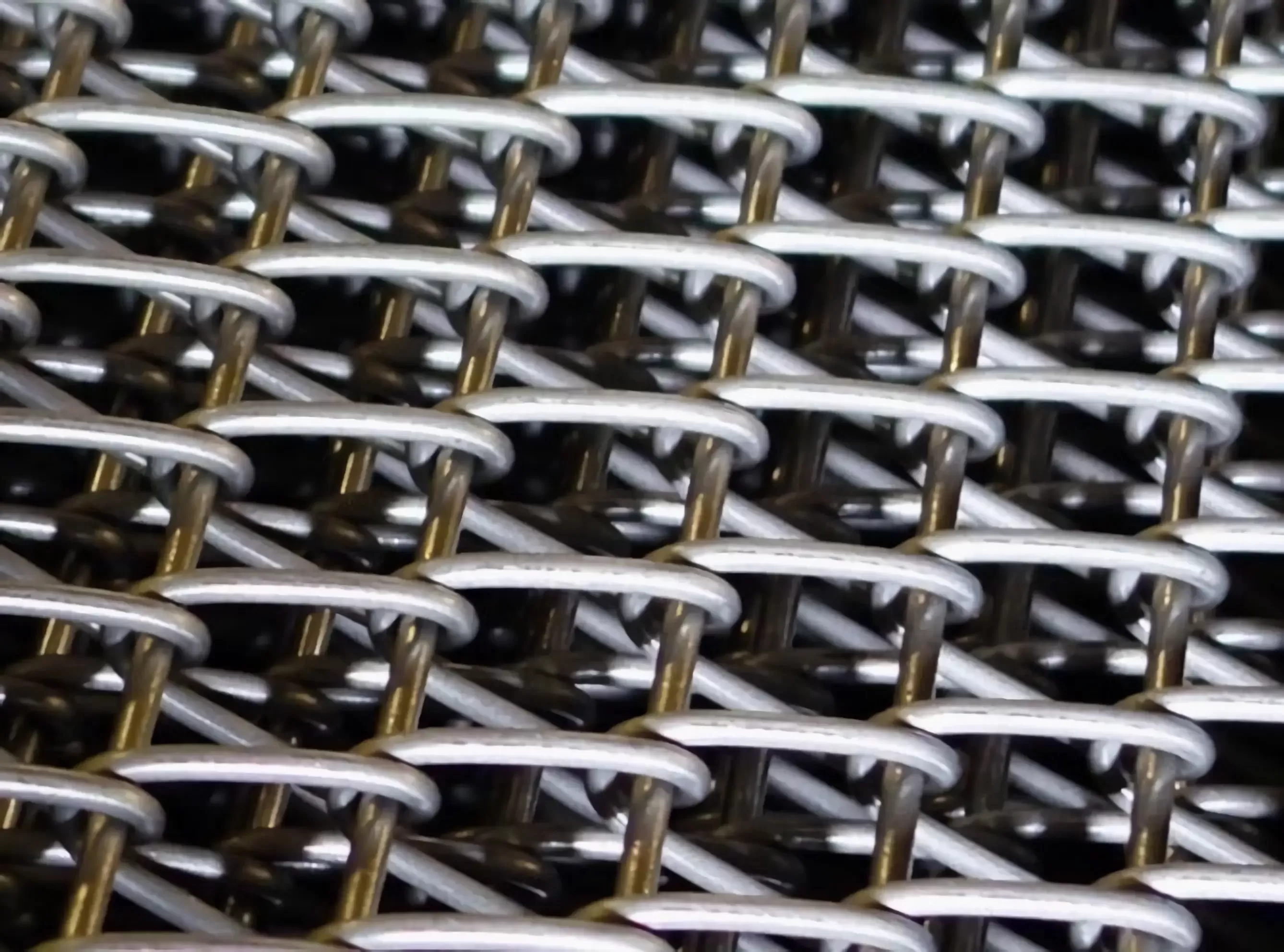

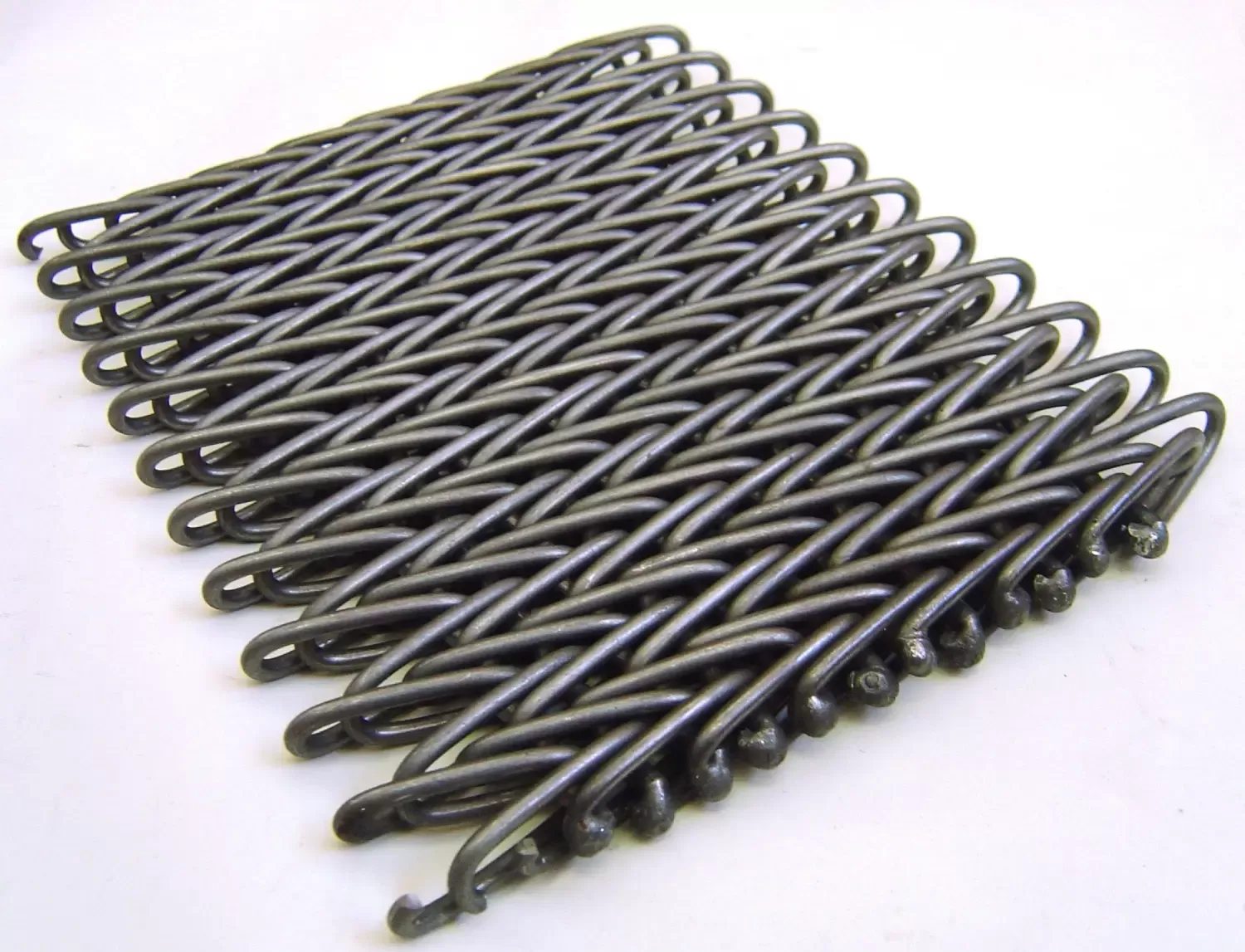

Conveyor belts are designed for reliable material transport across a wide range of industrial sectors. Steel conveyor belts are used in applications where operating conditions prevent the use of belts made from other materials, for example in the food industry, mechanical engineering, glassworks, or high-temperature processes. They are most commonly manufactured from wire mesh or specialised link constructions, ensuring strength and long service life. Their open construction enables effective ventilation, heat dissipation, and straightforward maintenance. A wide range of configurations is available, tailored to the specific technology and the type of material being conveyed.
Applications
Transport, handling, washing, cleaning, degreasing, steaming, soaking, pickling, draining, drying, cooling, freezing, pre-cooking, baking, tempering, firing, hardening, soldering, pressing, and separation.
Materials and finishes
- Steel, galvanised wire – for standard and medium-duty applications
- Stainless steel – suitable for food processing or corrosive environments
- Heat-resistant and manganese steel – for high temperatures and extreme loads
- Surface finishes: galvanising, copper plating, metallic coating, PTFE coating (PTFE-coated belts are also suitable for food applications and easy to clean)

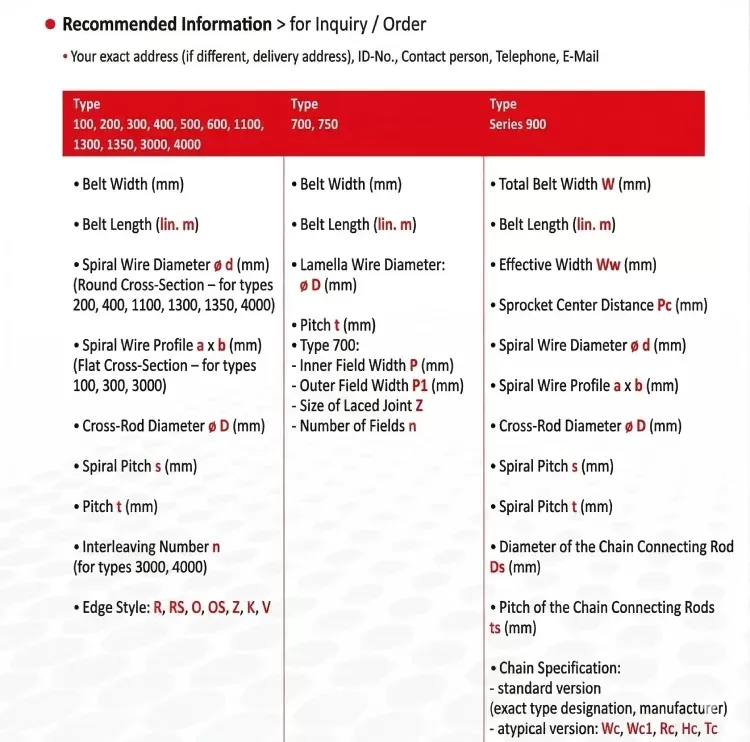

- Material
- Operating conditions:
- Temperature (°C)
- Atmosphere
- Speed (m/s)
- Load (kg/m²)
- Existing belt (sample, type, specification)
- Additional information (e.g. belt routing and drive arrangement drawing)
Explanation of symbols
- d – spiral wire profile
- D – connecting rod diameter
- s – spiral pitch
- t – connecting rod pitch
- n – number of interlinks
- Z – terminating edge width
- W – overall belt width
- Ww – effective belt width
- Ds – chain support rod diameter
- ts – support rod pitch
Please send enquiries to: pasy@perfolinea.cz
Have a question?
Complete the enquiry form and we’ll be in touch.
Operating conditions and use
- Temperature range: –50 °C to +1200 °C
- Environment: humid, chemically aggressive, abrasive, food processing, and high-temperature environments
- Typical applications: drying, cooling, pressing, baking, separation, pickling, firing, hardening, and other technological processes
Advantages of PERFO LINEA belts
- High-quality materials
and finishes for extended service life - Wide range of belt types
including solutions for non-standard requirements - Modern manufacturing technologies
with final quality control - Options for surface and structural modifications
(side plates, flights) - Consultancy and technical support
directly from the manufacturer
