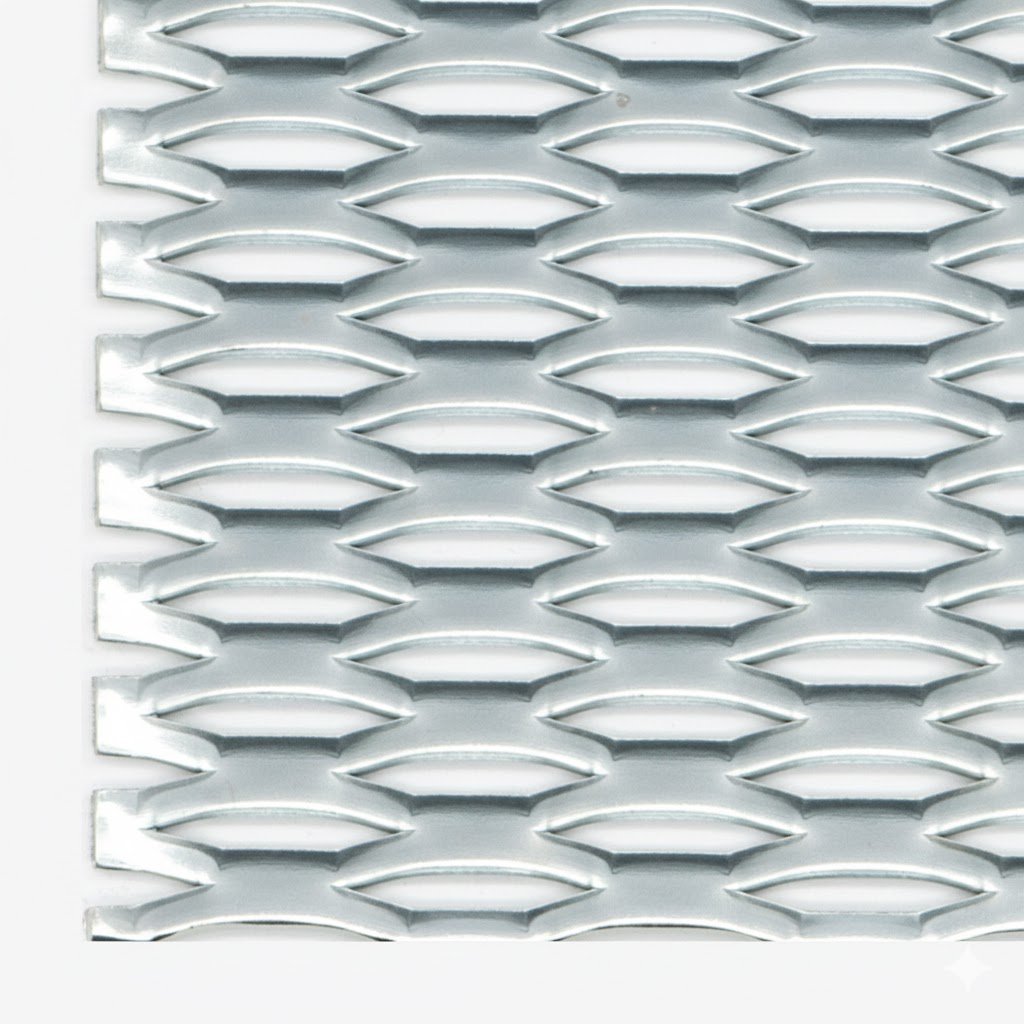

Expanded metal with hexagonal openings combines distinctive design with practical functionality. It is used for fencing panels, architectural elements and walkable surfaces. In thinner sheets, it can be adapted to specific customer requirements, while thicker variants provide a safe surface without the risk of high heels slipping through. It is manufactured in accordance with the DIN 791 standard.
Applications
Mechanical engineering, construction, automotive industry, food processing, electrical engineering, agriculture and the chemical industry.
Types of hexagonal mesh
d – mesh length
s – mesh width
p – sheet thickness
c – strand width
s – mesh width
p – sheet thickness
c – strand width
Materials
Steel, stainless steel, galvanised steel sheet, Corten steel, aluminium.
Standard formats
- 1 x 2 m | 1,25 x 2,5 m | 1,5x3 m | 2x1,5 m
This type of expanded metal is usually supplied in a rolled form.
PERFO LINEA can also supply materials in other dimensions according to your requirements.
Material thickness
Commonly used material thicknesses range from 0.3 mm to 6 mm.
PERFO LINEA can also supply other material thicknesses according to your requirements.
Free area – permeability
The free area depends on the type of expanded metal and can reach up to 80%.
Technical delivery conditions
Standard production positions are intended primarily for technical applications. The technical delivery conditions are based on our experience in supplying perforated materials. Please review them carefully – they explain important details necessary for selecting the appropriate material and ensuring its correct application.
The document can be found in the footer of the website.
